DETAIL
Leakage outside production
A permanently high basic consumption during breaks, at night or on weekends shows leaking nets, open valves or unconnected consumers.
Products · Sensors · Volume flow measurement
Volume flow measurement
Actual air consumption links energy input to production, making performance indicators, cost allocation and leakage visible.
4–20 mATypical signal
10 sVisualization grid
24/7Monitoring
Why monitor?
What this parameter reveals about your compressed air station.
Flow rate shows when and where compressed air is consumed. Together with electrical power, pressure and production data, it distinguishes necessary process demand from avoidable losses.
DETAIL
Unusual consumption peaks
Short or recurring peaks can indicate blow-off processes, impulsive large consumers, incorrect operation or an unfavorably dimensioned memory.
DETAIL
Inefficient compressed air generation
If the energy input increases at the same amount of air, excessively high pressure, inappropriate compressor combinations or technical problems worsen the specific performance.
In practice
Choose the right measurement for dry and wet compressed air.
Insertion and inline sensors are suitable for treated compressed air. Directly after the compressor, upstream of the dryer, condensing moisture requires a suitable differential pressure method. The ranges below relate to the versions shown.

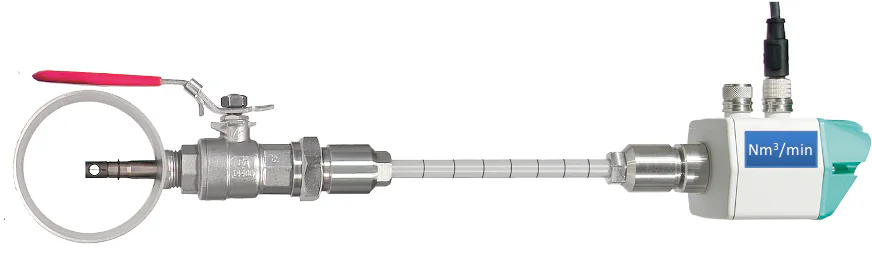

Insertion sensor
For large pipe diameters; the version shown can be installed under pressure through a ball valve. Observe the manufacturer’s straight inlet and outlet requirements.
- Up to 12 inches / DN 300
- Up to 23,307.68 cfm
- Up to 725.19 psi

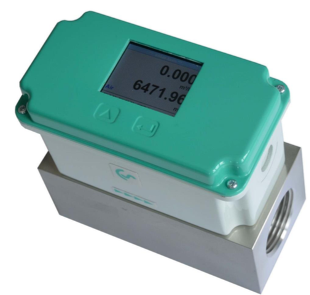

Inline flow sensor
For small pipes and individual consumers. The version shown requires no additional straight inlet or outlet runs.
- From 1/4 inch: 0–25 l/min
- Up to 2 inches: 0–854.61 cfm

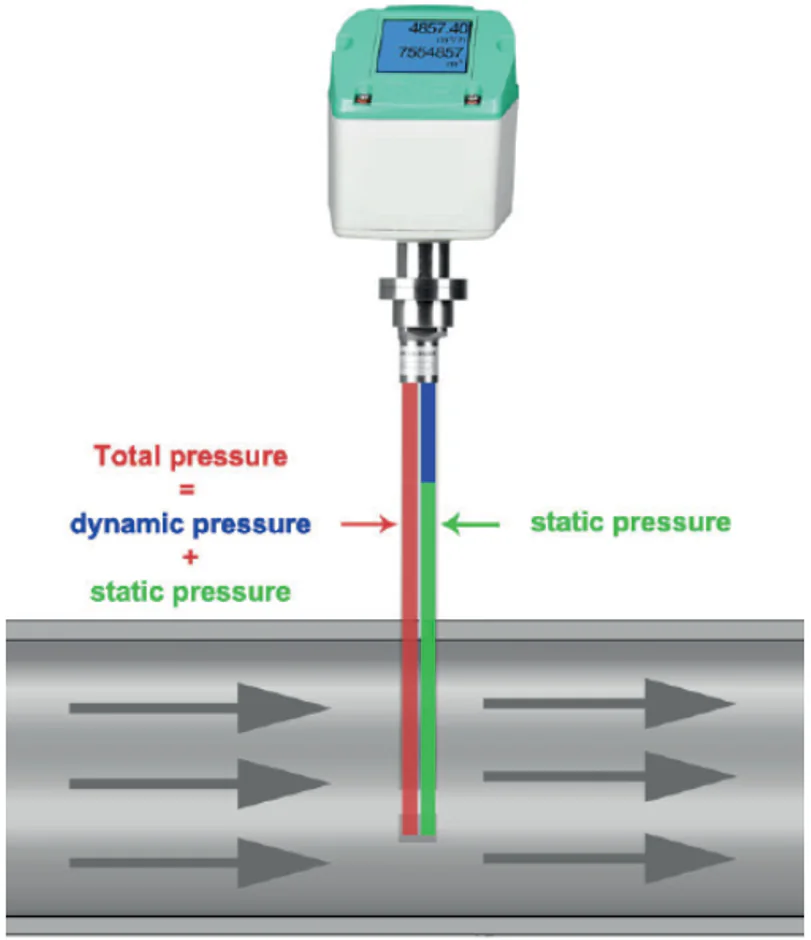

Differential pressure sensor for wet compressed air
Measures differential pressure at the probe tip. Pipe diameter, temperature and absolute pressure are used to determine flow, including upstream of the dryer.
- Suitable for condensing moisture
- Assess the delivery performance of individual compressors
In the Airleader system
One signal – multiple uses.
DETAIL
Live display
Current measured value and status are visible directly in the web visualization.
DETAIL
Long-term trend
10-second averages make deviations, shifts and recurring patterns comparable.
DETAIL
Alerts & Report
limit violations are reported; Values are included in energy, quality or maintenance certificates.
Initial technical consultation
Which solution fits your station?
In 30 minutes we clarify the station, load situation and the most sensible next step – free of charge and without preparation.
